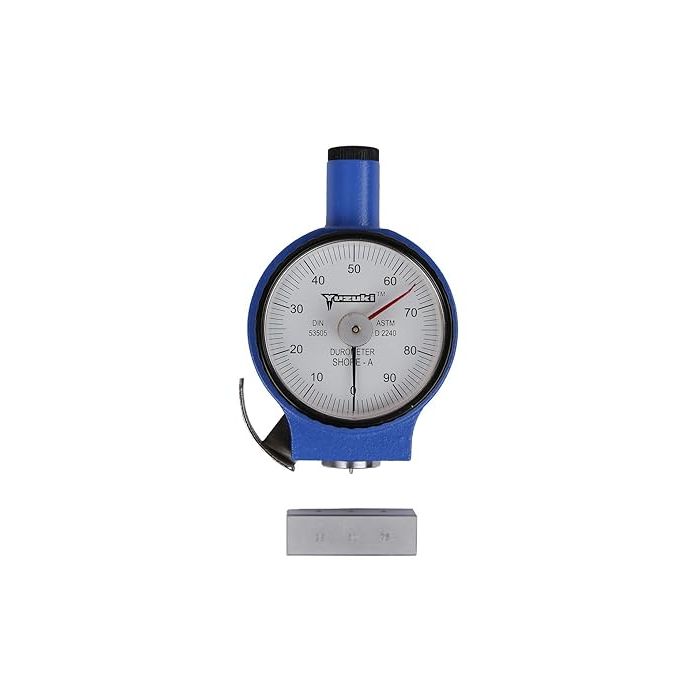

YUZUKI Rubber Hardness Tester Shore A Durometer Export Quality

Measuring Principle: Measures hardness based on the resistance force of a pin’s penetration into the test material under a known spring load (max. 2.54mm / 0.1in.). Measuring Range: 0-100 units, covering a wide range of hardness levels. Standards Compliance: Conforms to DIN 53505 and ASTM D2240 for accurate and reliable results. Accuracy: - Export Model: ±1 Shore Hardness Unit - Single Needle & Pin Pointer Model: ±1.5 Shore Hardness Unit Recommended Scale: Per ASTM D2240, readings below 10 and above 90 are unreliable; select the appropriate scale for accurate results. Base Contact Area: 18mm diameter, ensuring stable and precise measurements. Indentors: Made of High-Speed Steel (HSS) with Linear Bearings for smooth, precise operation. Material & Build: Crafted from Stainless Steel with a hard chrome-plated, ground contact surface for durability. Max Work Height/Width: 80mm x 100mm, accommodating various testing applications. Package & Dimensions: Includes 1 Tester Shore A, measuring 7cm x 5cm x 5cm, with a total weight of 7kg for portability and robustness.
