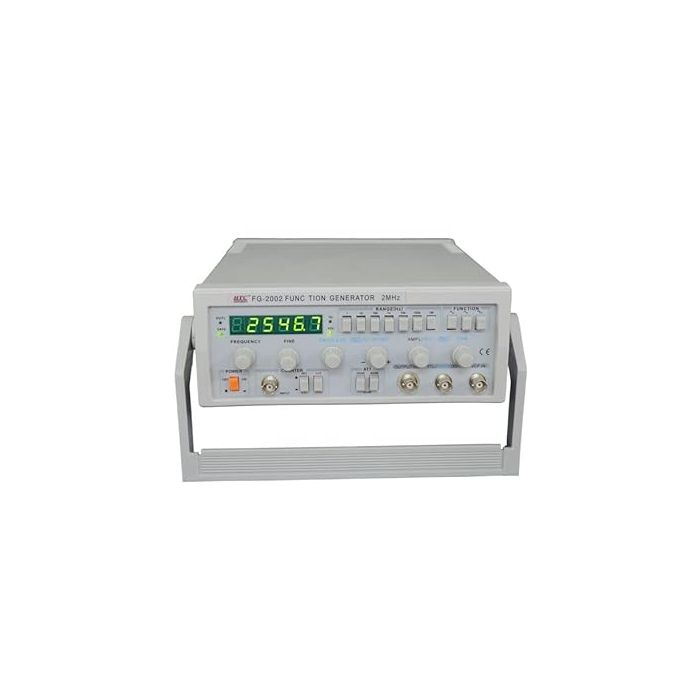

HTC FG 2002 Function Generator 0.1Hz - 2MHz
Special Price
₹11,499.00
Regular Price
₹12,999.00
Discount:7.3 Points
CC Points:0.73
Frequency Range : 0.1Hz-2MHz
Waveforms : Sine wave, Square wave, Triangle wave, Positive & Negative Sawtooth and Positive & Negative Pulse
Square-wave front: 0.1Hz-2MHz<100ns; 0.1Hz-10MHz<35ns; Sine wave Distortion: <1% (10HZ-100KHz);
Measurement error : ≤0.003%±1 digit; Output : Impedance : 50Ω±10%
Frequency meter: Measuring Range : 1Hz-20MHz; Input impedance : no less than 1MΩ/20pF; Sensitivity : 100m Vrms; Frequency response: 0.1Hz-100KHz≤±0.5dB; 100KHz-5MHz≤±1dB; 100KHZ-2MHz≤±1dB
